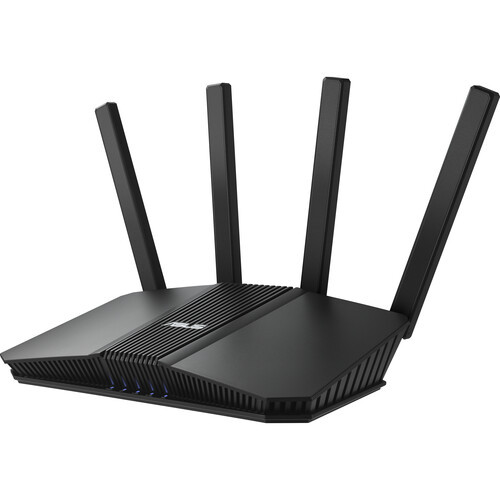

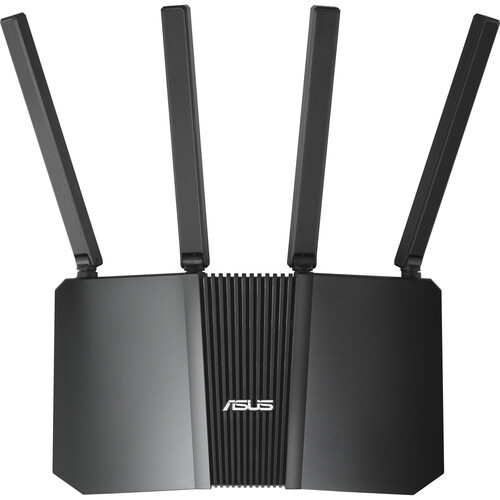

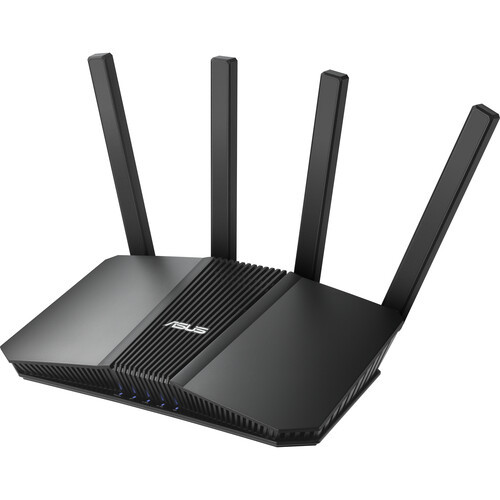

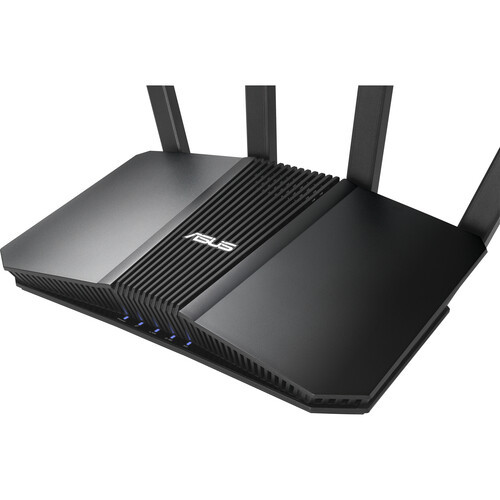

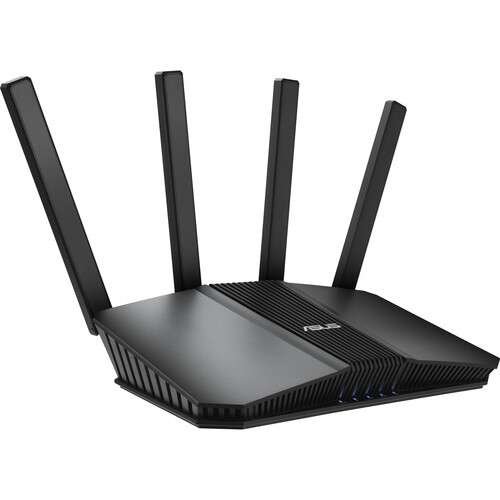

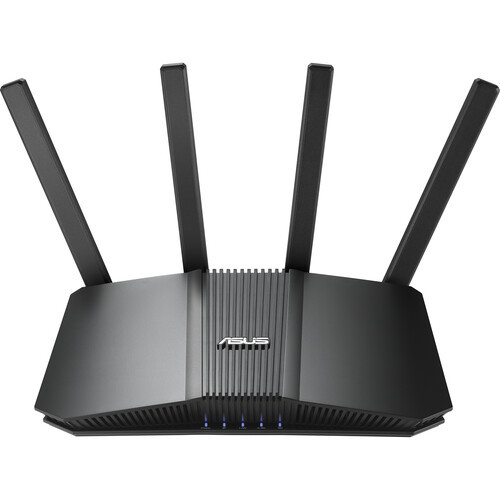

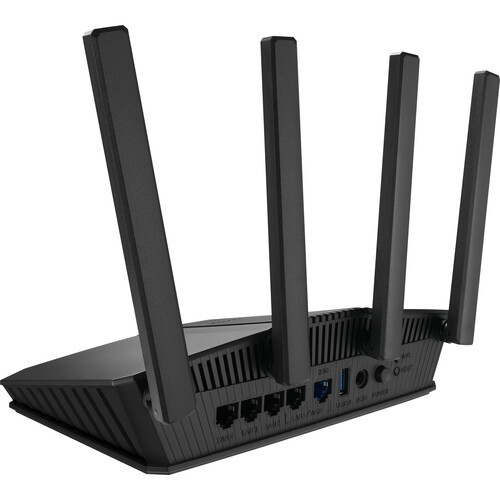

Asus RT-BE58U Dual-Band WiFi 7 3600 Mbps 2.5G Smart AiMesh Parental Control Extendable Router

Model : RT-BE58U
Network Standard :
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6

Product Segment : BE3600 ultimate BE performance : 688+2882 Mbps

WiFi Data Rate :
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps

WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
Antenna : External antenna x 4
Transmit / Receive :
2.4GHz 2×2
5GHz 2×2

Processor : 2.0 GHz quad-core processor

Memory :
256 MB Flash
1 GB RAM

Boosts Speed :
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency :
2.4GHz / 5GHz
2.4 GHz
5 GHz
Operating Mode :
Wireless router mode
Access point mode
Media bridge mode

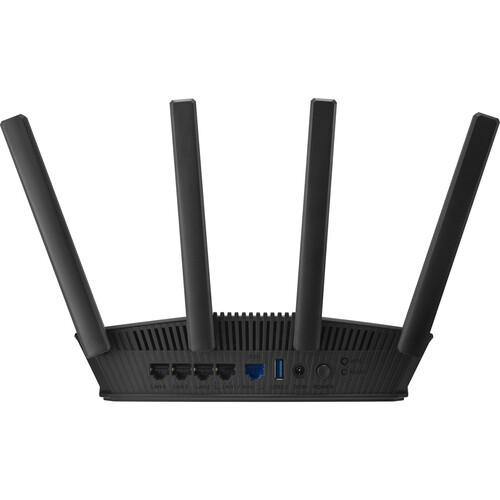

I/O Ports :
1x 2.5G for WAN/LAN,
1x 1G for WAN/LAN,
3 x 1G LAN,
USB 3.2 Gen 1 x 1

Buttons : WPS Button, Reset Button, Power Button

LED Indicator :
Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1

Power Supply :
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current

Package Content :
RT-BE58U
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

Product Weight (g) : 461g
Product Dimensions : 238 x 193 x 59 mm

AiMesh :
AiMesh
• Primary AiMesh Router
• AiMesh Node

Parental Control :
"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Safe Browsing
Customized Internet Schedule

Guest Network :
Yes
Support Guest Network
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit

Security :
AiProtection
VPN
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
Yes
Let's Encrypt
DNS-over-TLS
Security Scan
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection :
AiProtection Pro
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN :
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard

Traffic Control :
Yes
• Bandwidth Monitor
• Bandwidth Limiter
— Maximum Bandwidth Limiter Rule : 32
— Maximum Traditional QoS Rule : 32
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analysis Period : Daily, Weekly, Monthly

WAN :
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Yes
3G / 4G LTE dongle
4G / 5G Auto Mobile Tethering
• Maximum Port Forwarding Rule : 64
• Maximum Port Triggering Rule : 32
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

LAN :
DHCP Server
Yes
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64

Wireless :
MU-MIMO
Yes
WiFi MAC Address Filter
• Maximum MAC Filters : 64
RADIUS Client

USB application :
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges

User Interface :
WEB: ASUSWRT
APP: ASUS Router APP

Administration :
Yes
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
