DESCRIPTION

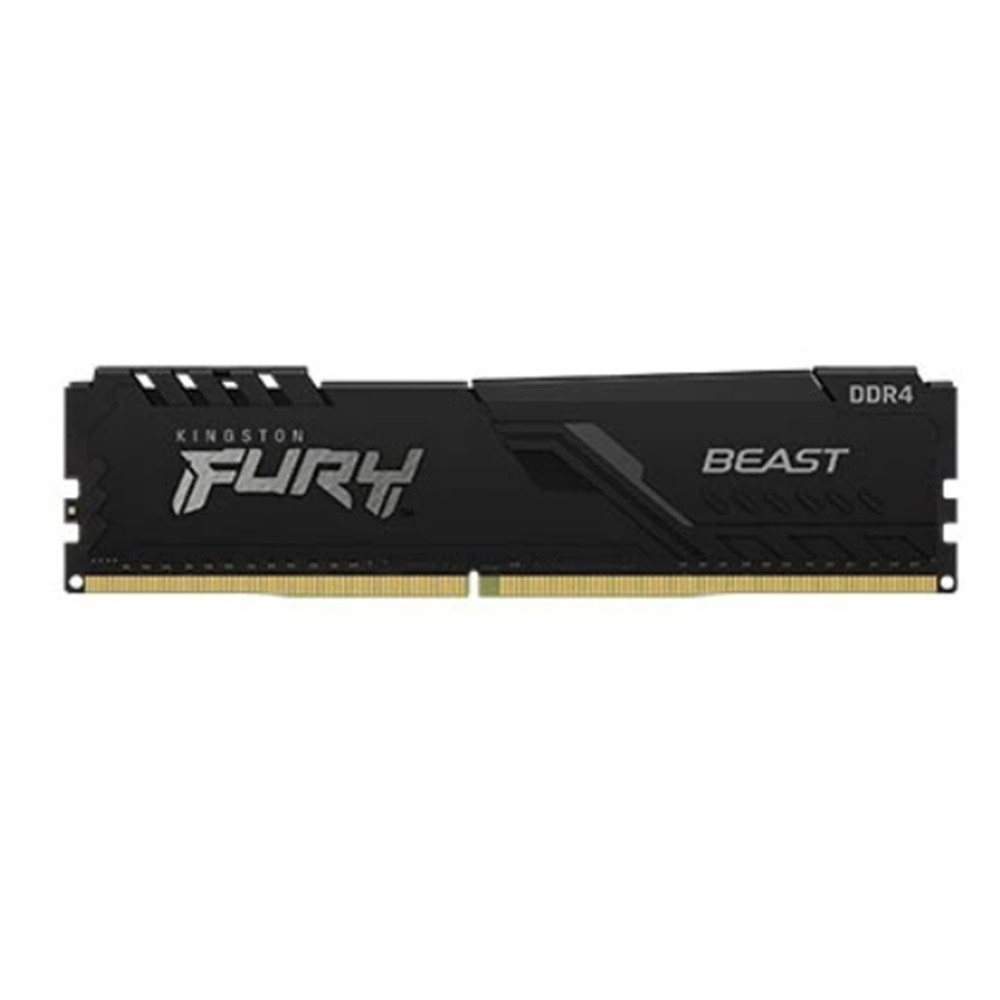

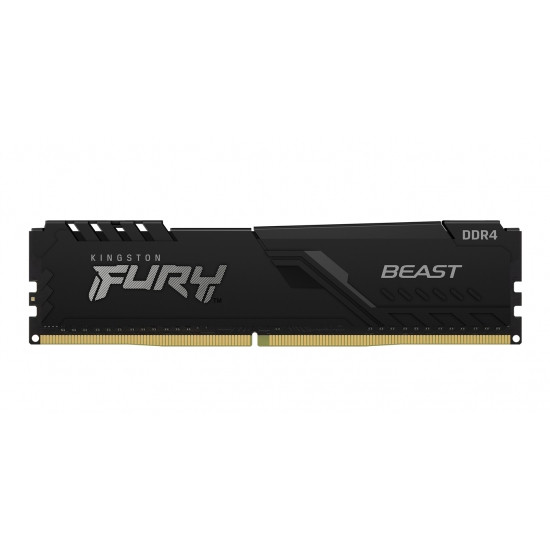

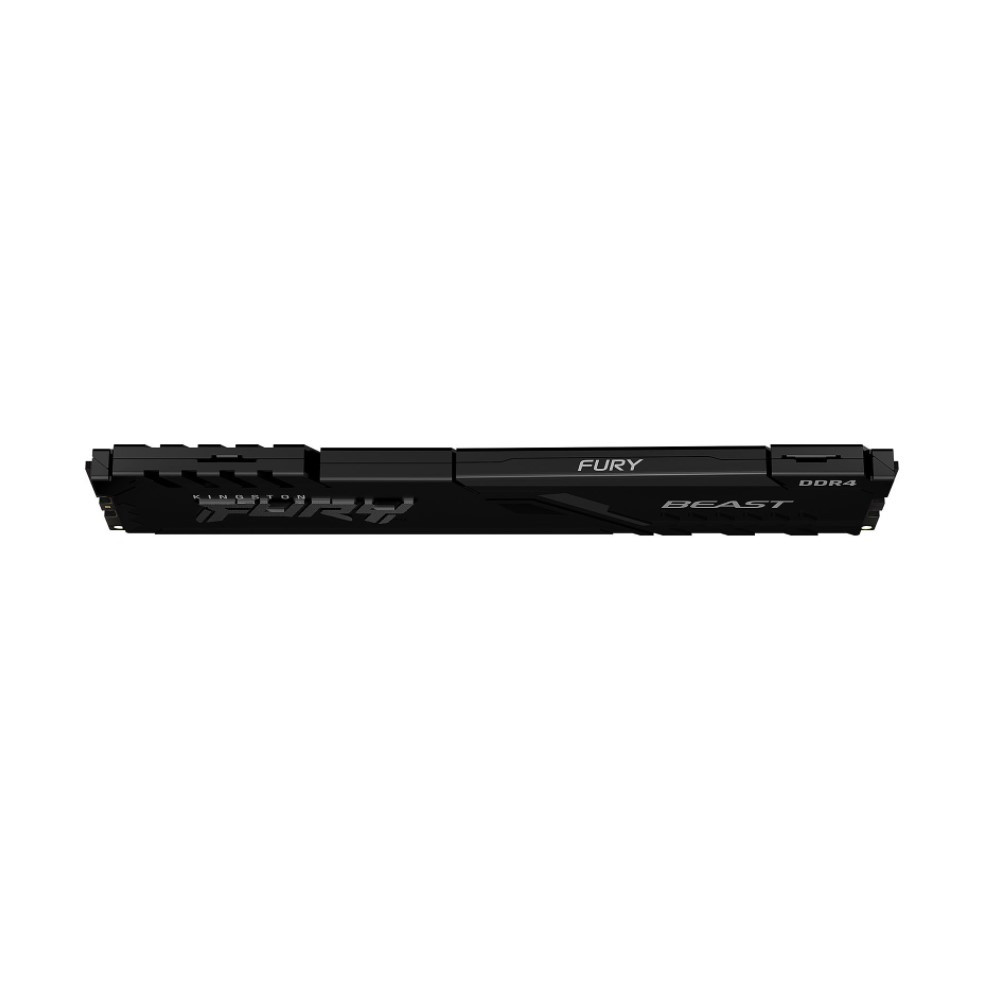

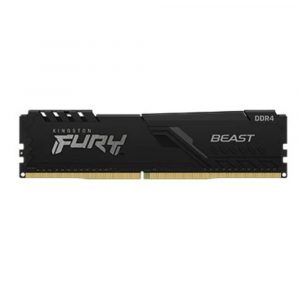

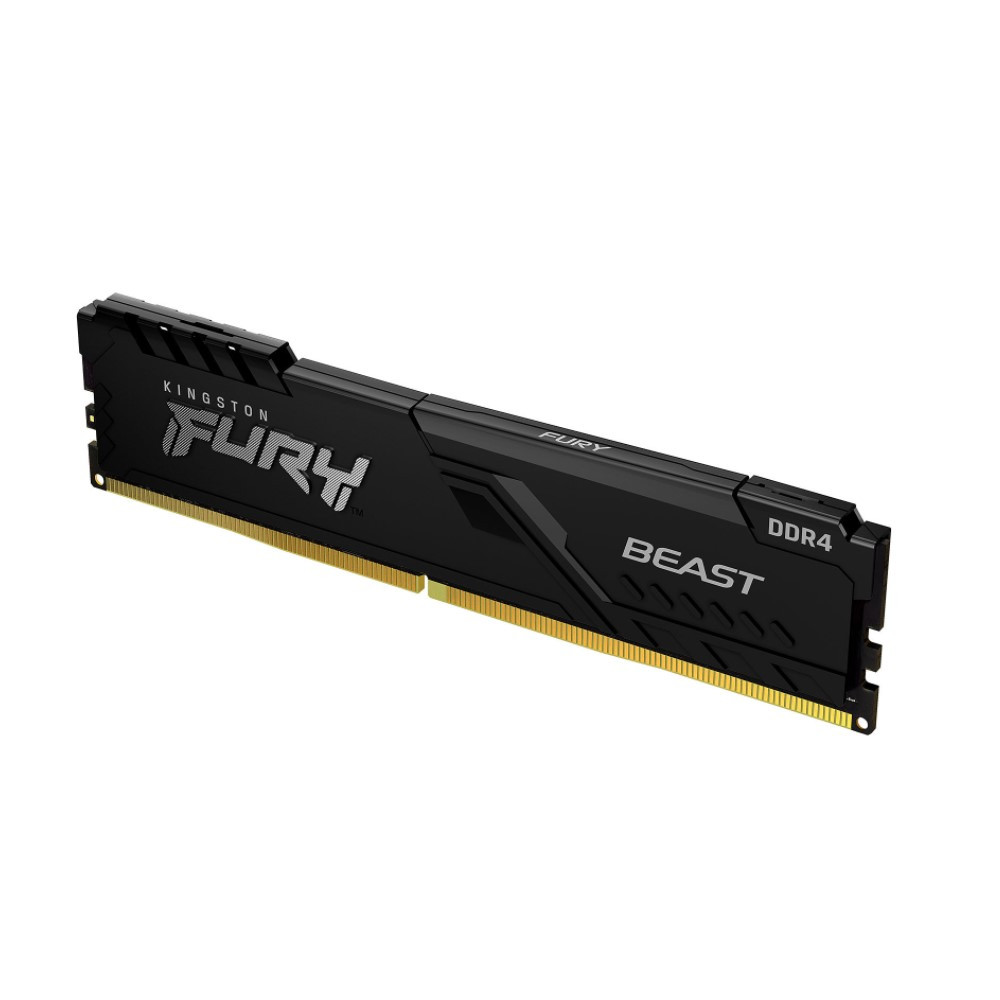

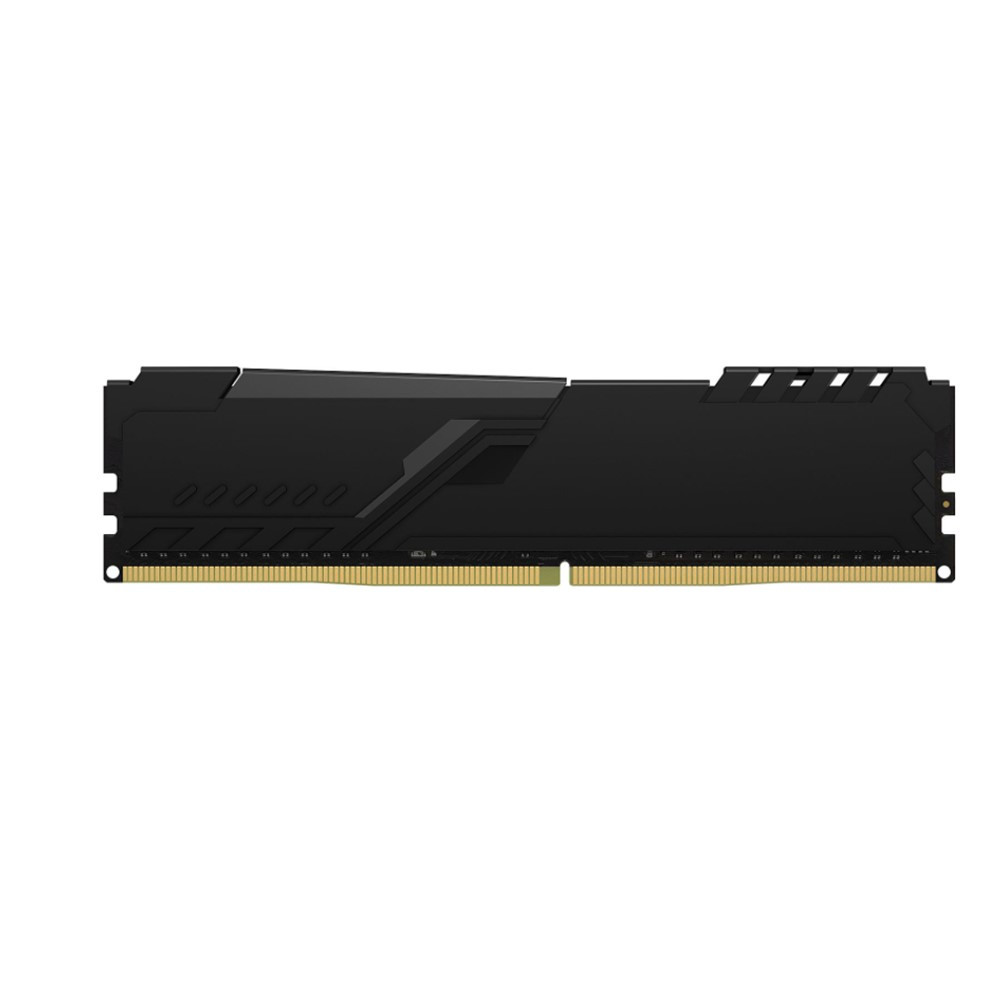

FURY KF426C16BB/8 is a 1G x 64-bit (8GB) DDR4-2666 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Each module has been tested to run at DDR4-2666 at a low latency timing of 16-18-18 at 1.2V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
*Note: The PnP feature offers a range of speed and timing options to support the widest variety of processors and chipsets. Your maximum speed will be determined by your BIOS.
FACTORY TIMING PARAMETERS
• Default (Plug N Play): DDR4-2666 CL16-18-18 @ 1.2V
• XMP Profile #1: DDR4-2666 CL16-18-18 @ 1.2V
SPECIFICATIONS
CL(IDD) : 16 Cycles
Row Cycle Time (tRCmin) : 45.75ns(min)
Refresh to Active/Refresh Command Time (tRFCmin) : 260ns(min)
Row Active Time (tRASmin) : 29.25ns(min)
UL Rating : 94 V – 0
Operating Temperature : 0o C to +85o C
Storage Temperature : -55o C to +100o C
