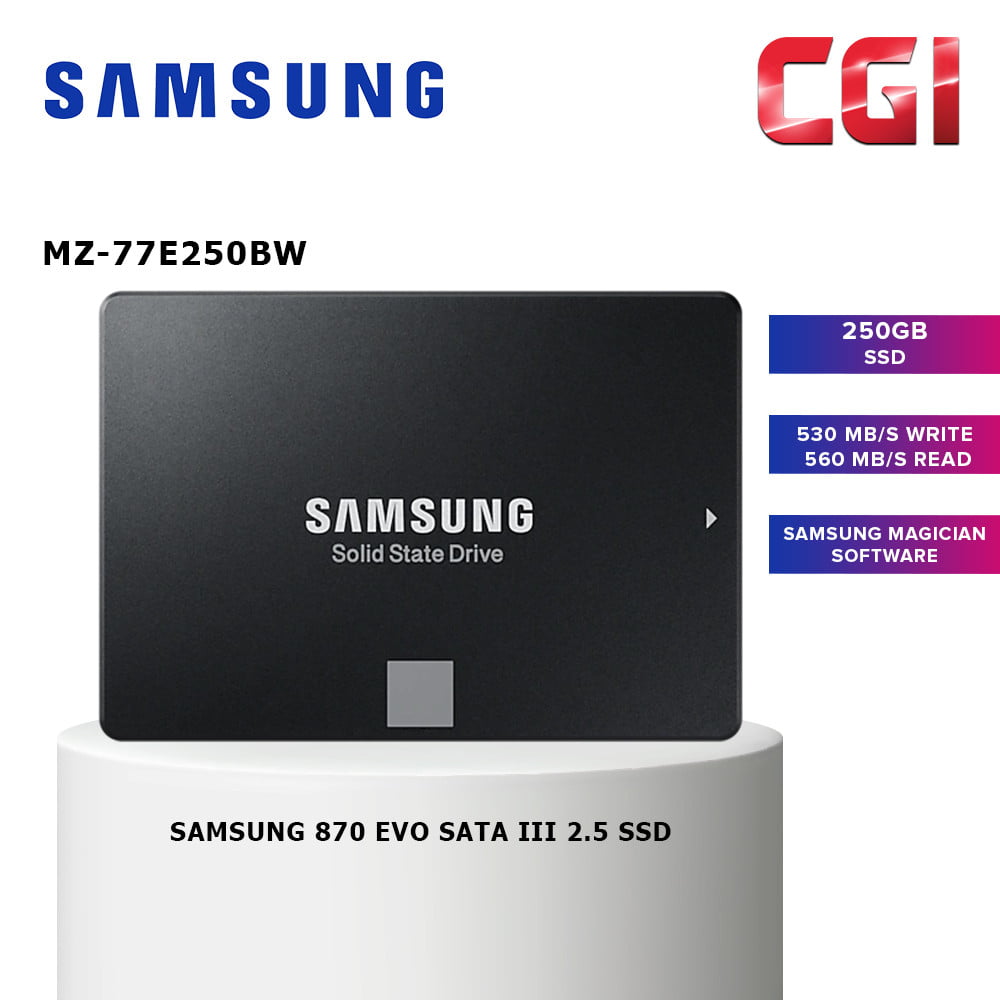

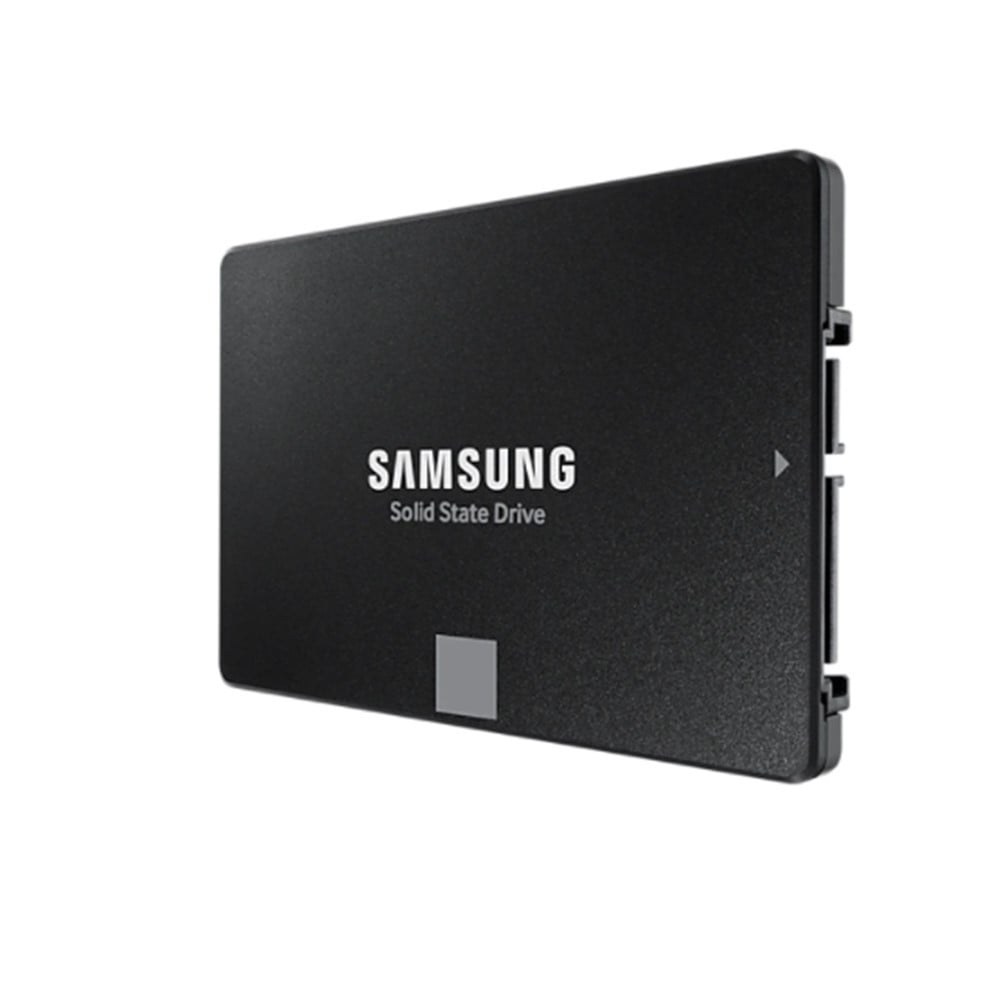

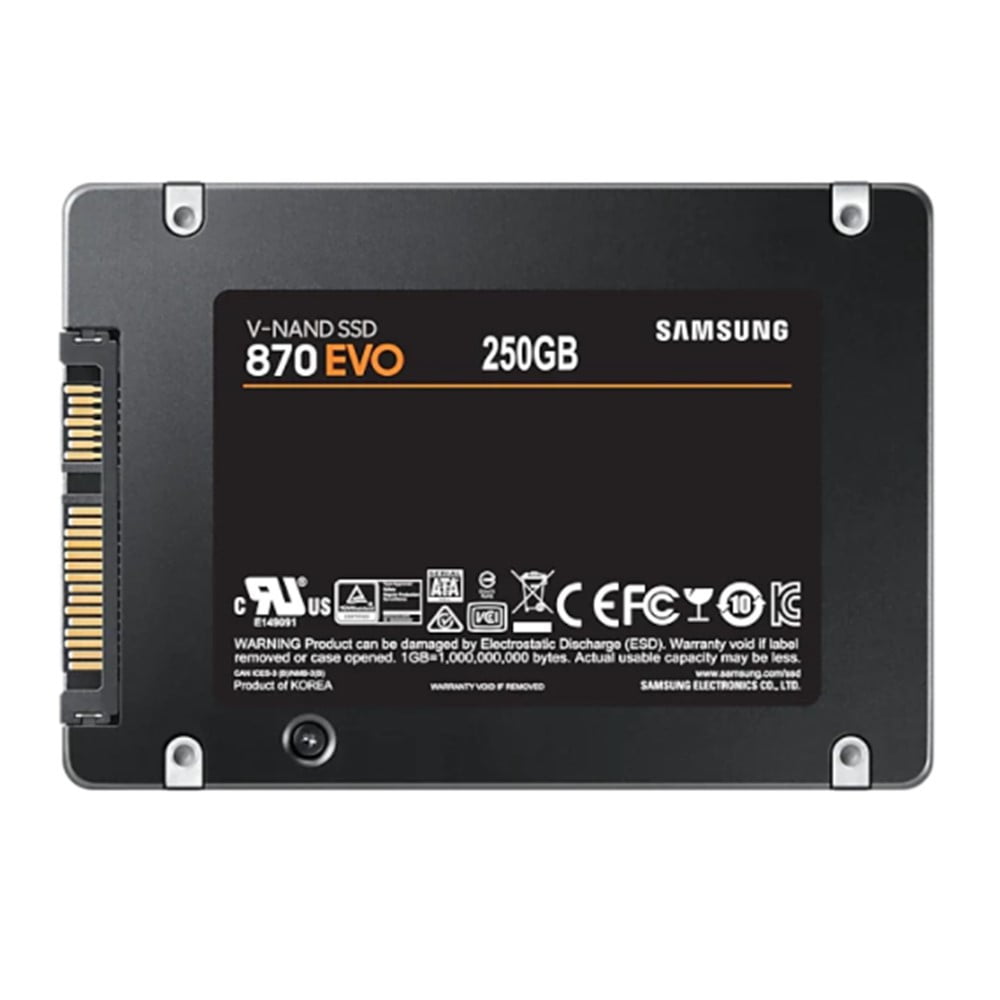

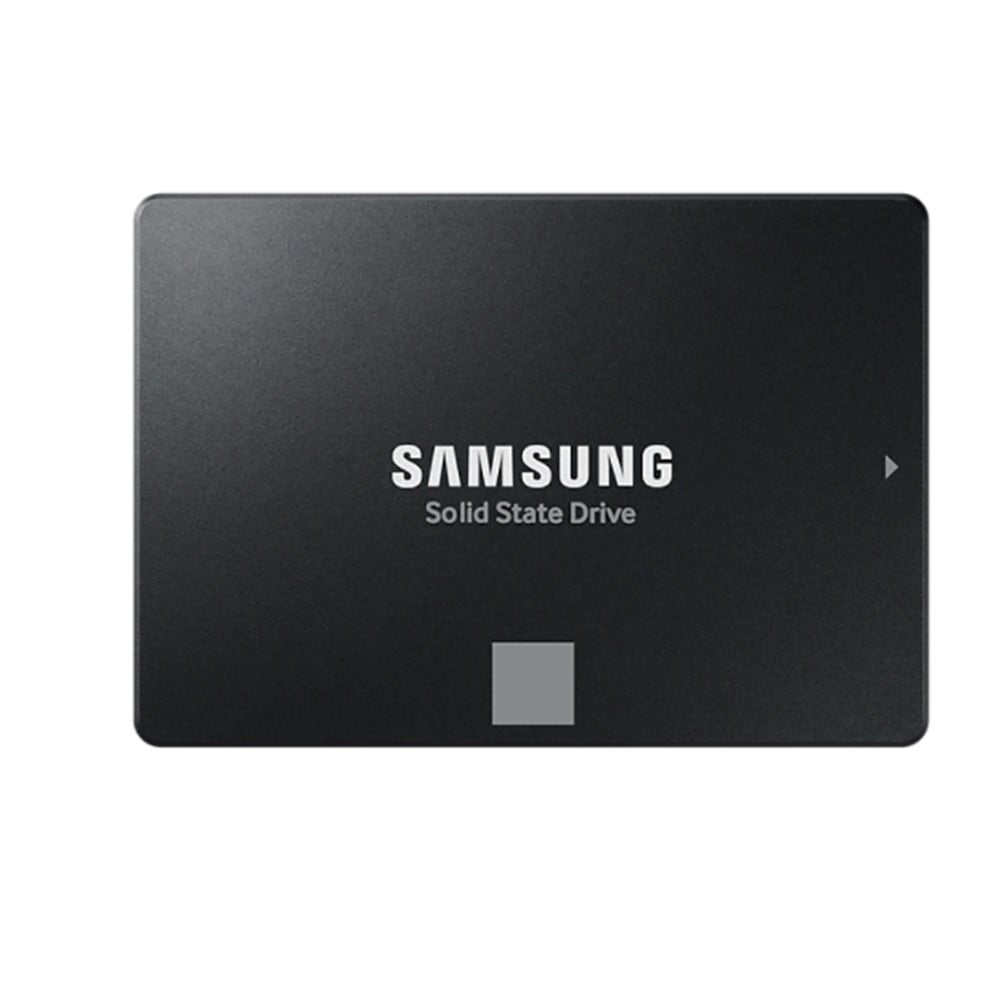

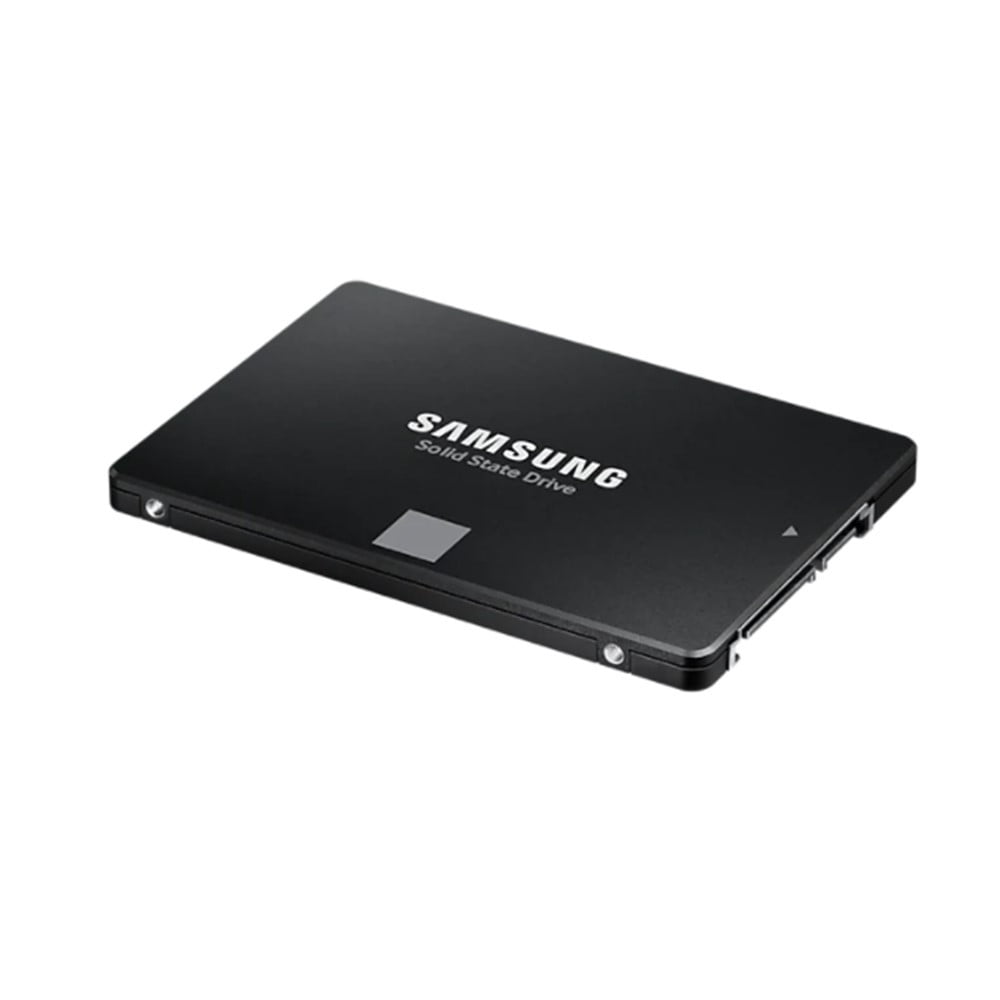

Samsung 870 EVO SATA III 2.5 250GB SSD (MZ-77E250BW)

Highly reliable and sustainable performance
Up to 560 MB/s sequential read and 530 MB/s write
Up to 2,400 TBW guaranteed endurance

SKU: SAM-MZ-77E250BW Categories: Samsung, Samsung

General Feature
ApplicationClient PCs
Capacity250 GB (1 GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Form Factor2.5 inch
InterfaceSATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface
Dimension (Pack: WxHxD)100 X 69.85 X 6.8 (mm)
WeightApporx. 45.0g Weight
Storage MemorySamsung V-NAND 3bit MLC
ControllerSamsung MKX Controller
Cache MemorySamsung 512 MB Low Power DDR4 SDRAM
Special Feature
TRIM SupportTRIM Supported
S.M.A.R.T SupportS.M.A.R.T Supported
GC (Garbage Collection)Auto Garbage Collection Algorithm
Encryption SupportAES 256-bit Encryption (Class 0),TCG/Opal, IEEE1667 (Encrypted drive)
WWN SupportWorld Wide Name supported
Device Sleep Mode SupportYes
Performance
Sequential ReadUp to 560 MB/s Sequential Read * Performance may vary based on system hardware & configuration
Sequential WriteUp to 530 MB/s Sequential Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Random Read (4KB, QD32)Up to 98,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Random Write (4KB, QD32)Up to 88,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Random Read (4KB, QD1)Up to 13,000 IOPS Random Read * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Random Write (4KB, QD1)Up to 36,000 IOPS Random Write * Performance may vary based on system hardware & configuration ** Measured with Intelligent TurboWrite technology being activated
Environment
Average Power Consumption (system level)Average: 2.2 W *Maximum: 3.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
Allowable Voltage5V ± 5% Allowable voltage
Reliability (MTBF)1.5 Million Hours Reliability (MTBF)
Operating Temperature0 – 70 ℃ Operating Temperature
Shock1,500 G & 0.5 ms (Half sine)
Accessories
Installation KitNot Available
Software
Management SWMagician Software for SSD management, Data Migration Software for SSD upgrade
Warranty
5 Years Limited Warranty or 150 TBW Limited Warranty
