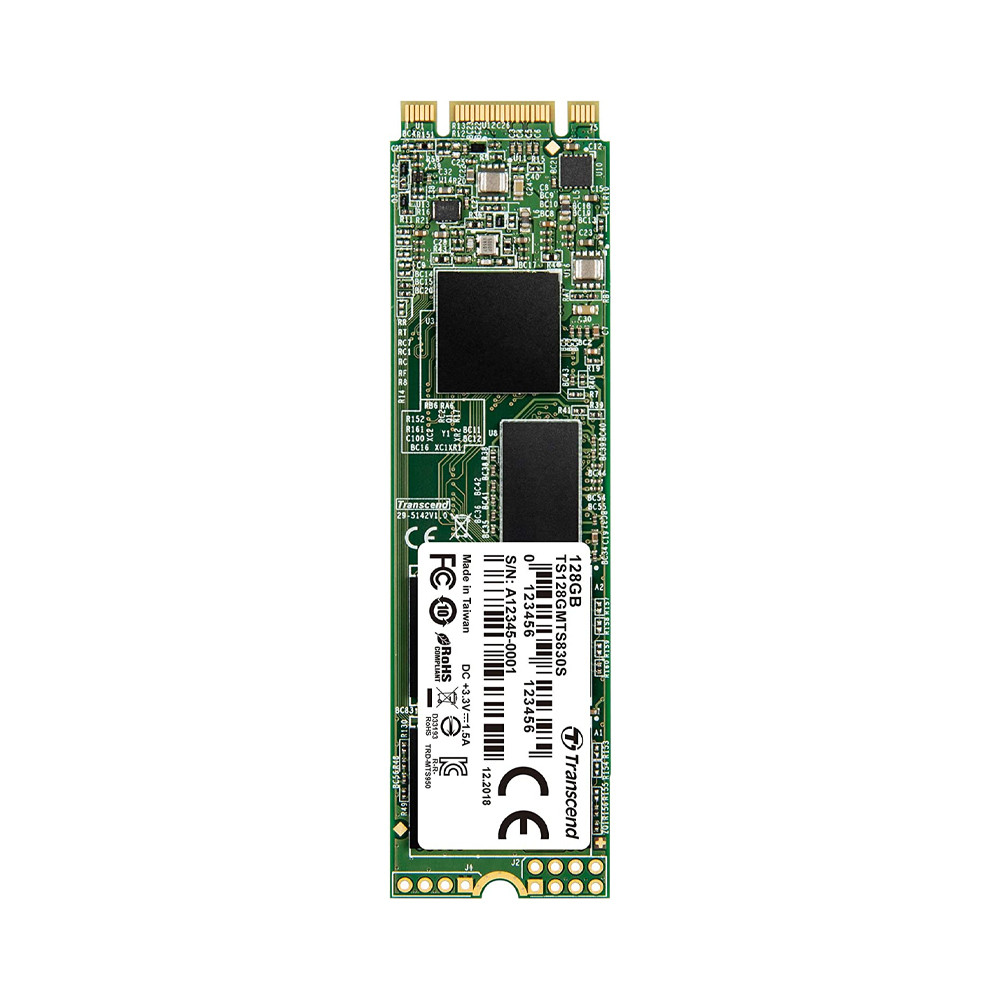

Transcend 128GB SATA III 6Gb/s 3D NAND M.2 2280 SSD – TS128GMTS830S

SKU: TS128GMTS830S Category: Transcend

Dimensions	80.0 mm x 22.0 mm x 3.58 mm (3.15" x 0.87" x 0.14")
Weight	9 g (0.32 oz)
Type	M.2 2280
Interface
Bus Interface	SATA III 6Gb/s
Storage
Flash Type	3D NAND flash
Capacity	128 GB/ 256 GB/ 512 GB/ 1 TB/ 2 TB/ 4 TB
Operating Environment
Operating Temperature	0°C (32°F) ~ 70°C (158°F)
Operating Voltage	3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)	4 TB up to 560/520 MB/s 2 TB up to 560/520 MB/s 1 TB up to 560/500 MB/s 512 GB up to 560/500 MB/s 256 GB up to 530/400 MB/s 128 GB up to 560/380 MB/s
4K Random Read/Write (IOmeter)	4 TB up to 90,000/85,000 IOPS 2 TB up to 90,000/85,000 IOPS 1 TB up to 85,000/85,000 IOPS 512 GB up to 80,000/85,000 IOPS 256 GB up to 45,000/70,000 IOPS 128 GB up to 40,000/65,000 IOPS
Terabytes Written (TBW)	4 TB 2240 TBW 2 TB 1120 TBW 1 TB 560 TBW 512 GB 280 TBW 256 GB 140 TBW 128 GB 70 TBW
Mean Time Between Failures (MTBF)	2,000,000 hour(s)
Drive Writes Per Day (DWPD)	1.33 (5 yrs)
Note	Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. Terabytes Written (TBW) expresses the endurance under the highest capacity.
Warranty
Certificate	CE/ FCC/ BSMI/ KC/ RCM/ UKCA
Warranty	Five-year Limited Warranty
Warranty Policy	Please click here for more information about the Transcend Warranty Policy. Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.
System Requirement
Operating System	Microsoft Windows 7 or later Linux Kernel 2.6.31 or later
Note	Please make sure that your computer has a M.2 slot.
