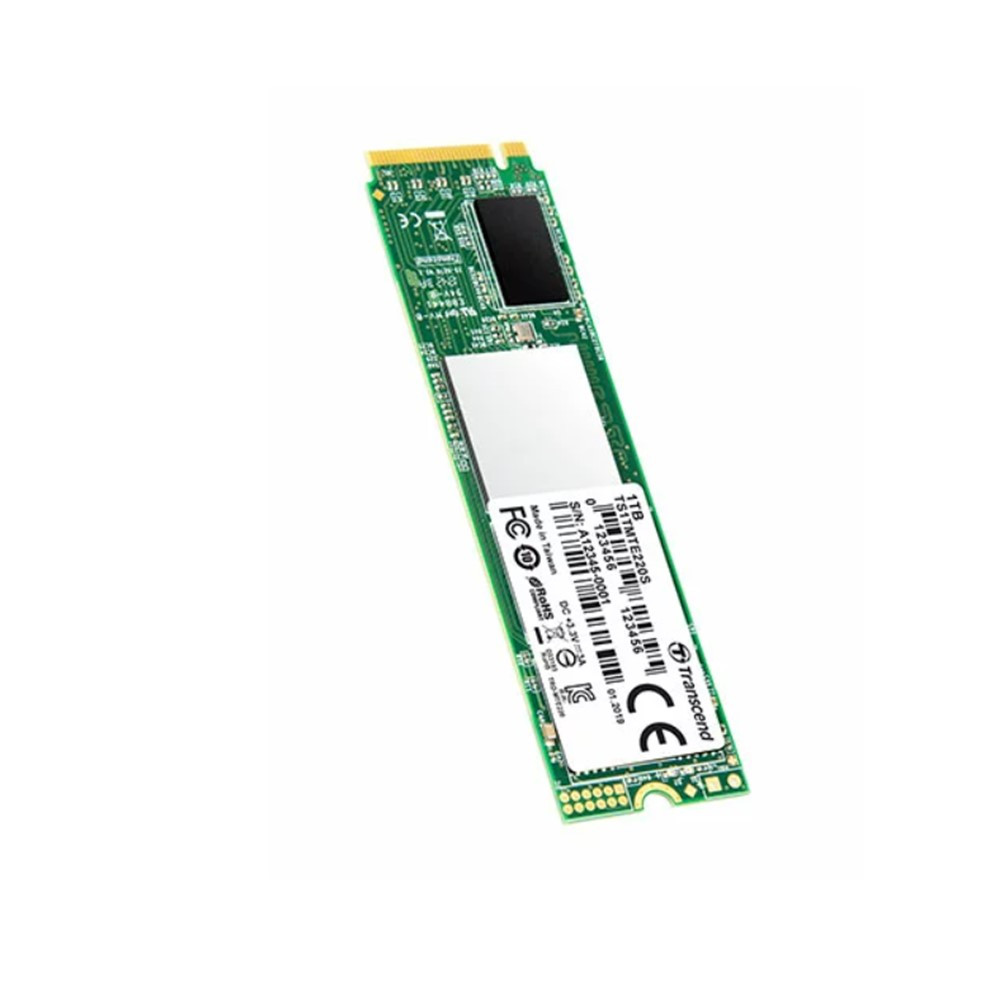

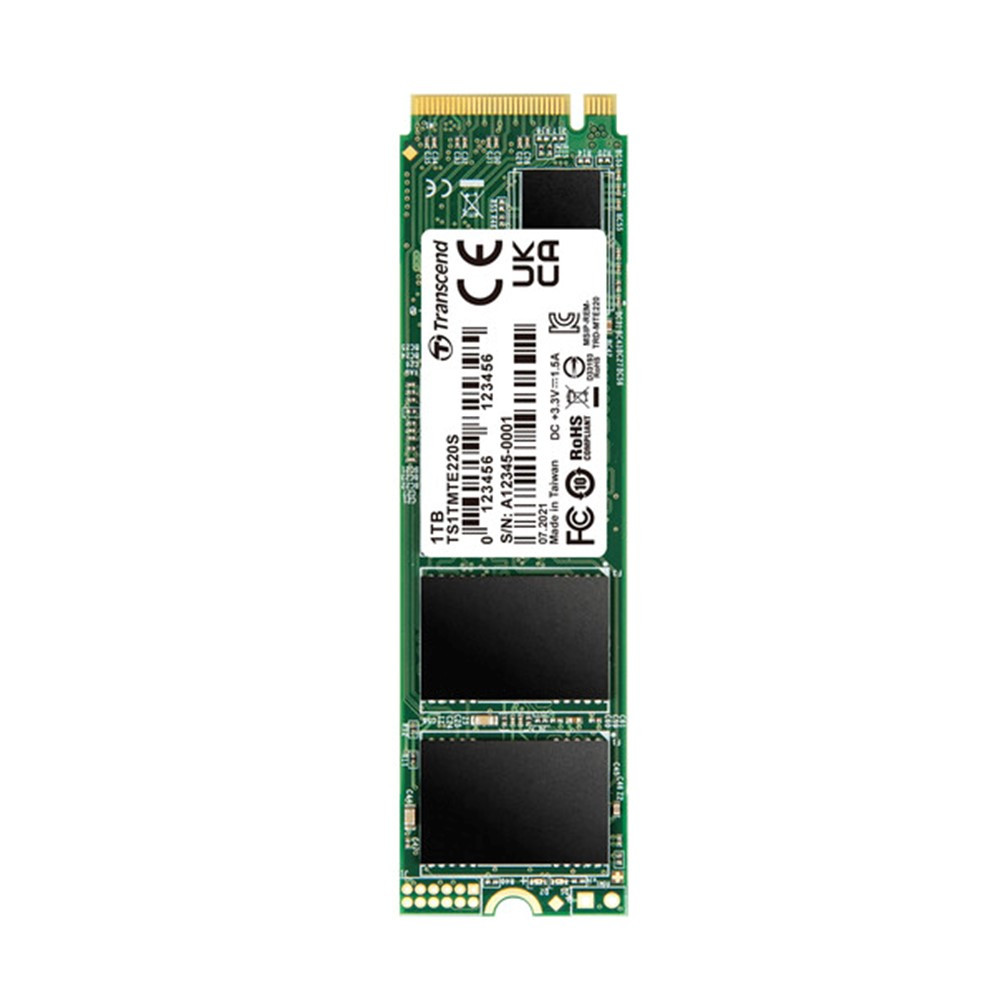

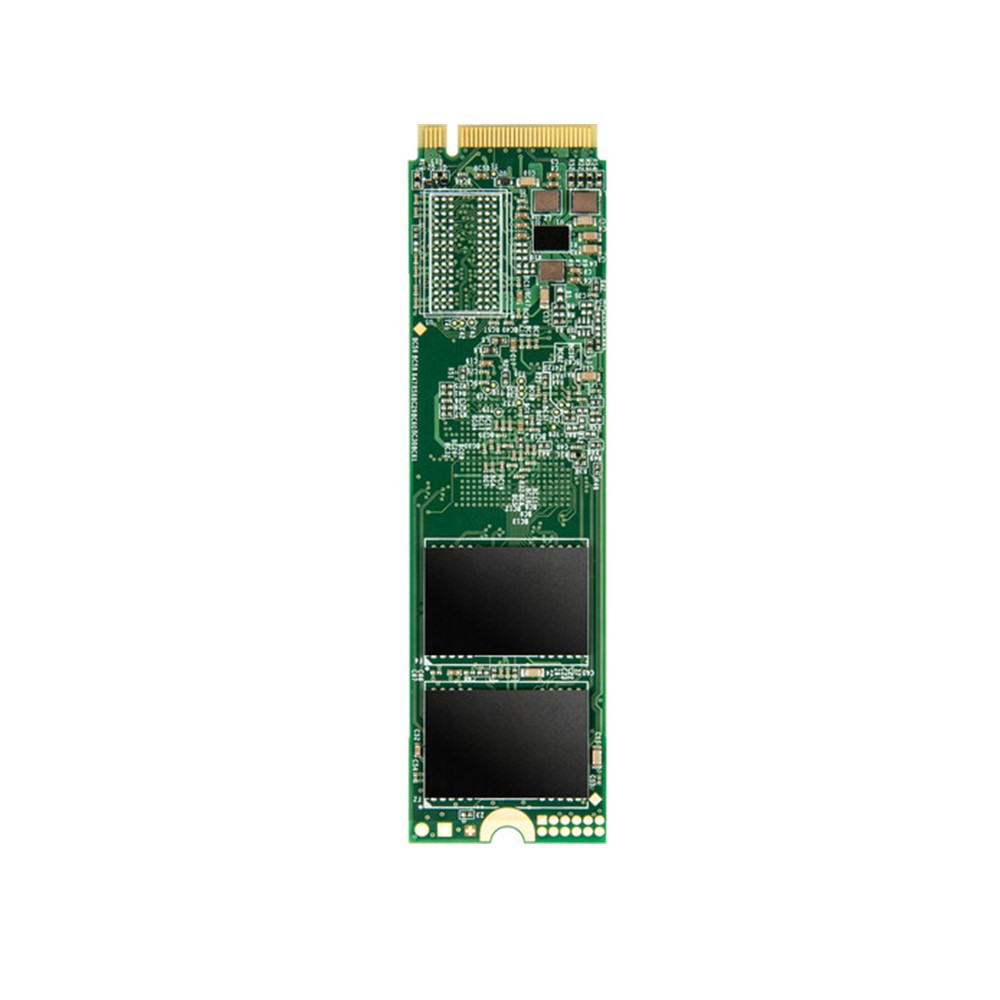

Transcend 1TB 220S PCle 3D NAND M.2 Gen 3×4 SSD – TS1TMTE220S

・Adopts PCIe Gen3 x4 interface and NVMe 1.3 standard

・Up to 3,500 MB/s read; 2,700 MB/s write

・3D NAND flash memory, 8-channel controller, and DDR3 DRAM cache

・Engineered with LDPC (Low-Density Parity Check) coding to ensure data integrity; built-in SLC caching technology for exceptional transfer speeds

・Engineered dynamic thermal throttling mechanism

Dimensions   ：  80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")

Weight   ： 10 g (0.35 oz)

Flash Type     ：  3D NAND flash

Capacity     ： 256 GB / 512 GB / 1 TB / 2 TB

Interface

Bus Interface ： NVMe PCIe Gen3 x4

Operating Temperature：0°C (32°F) ~ 70°C (158°F

Operating Voltage   ：  3.3V±5%

Sequential Read/Write (CrystalDiskMark, max.)  ：  Read: 3,500 MB/s Write: 2,700 MB/s

4K Random Read/Write (IOmeter, max.)  :  Read: 340,000 IOPS Write: 310,000 IOPS

Mean Time Between Failures (MTBF)  :  2,000,000 hour(s)

Terabytes Written (TBW)  :  4,400 TB

Drive Writes Per Day (DWPD)  :  1.2 (5 yrs)

Note  :

・ Speed may vary due to host hardware, software, usage, and storage capacity.

・ Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest

Certificate  :  CE/FCC/BSMI/KC/RCM

Warranty  :  Five-year Limited Warranty
