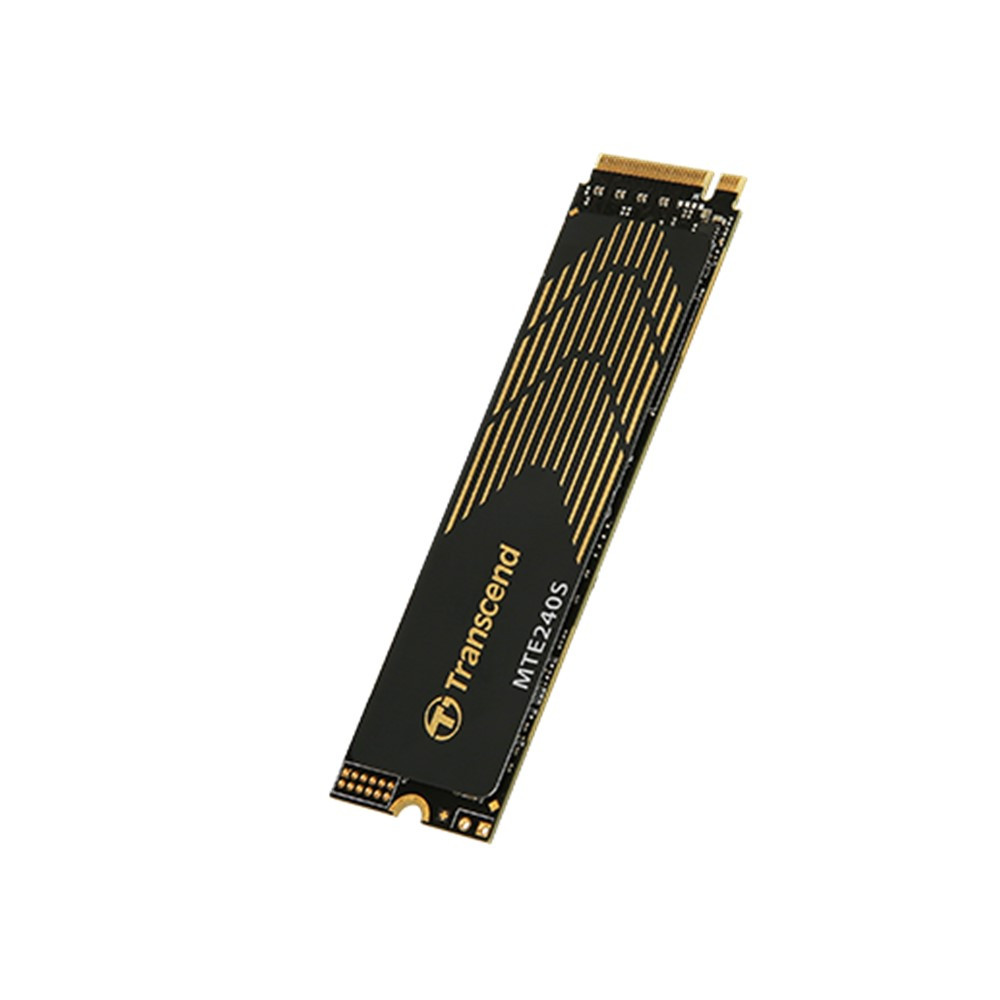

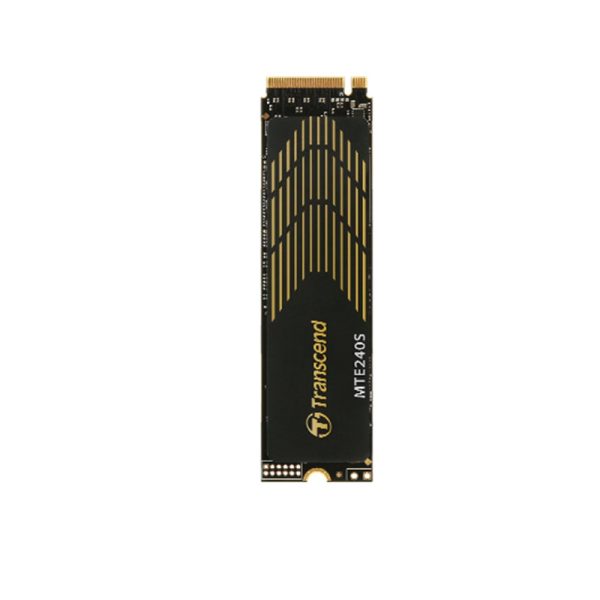

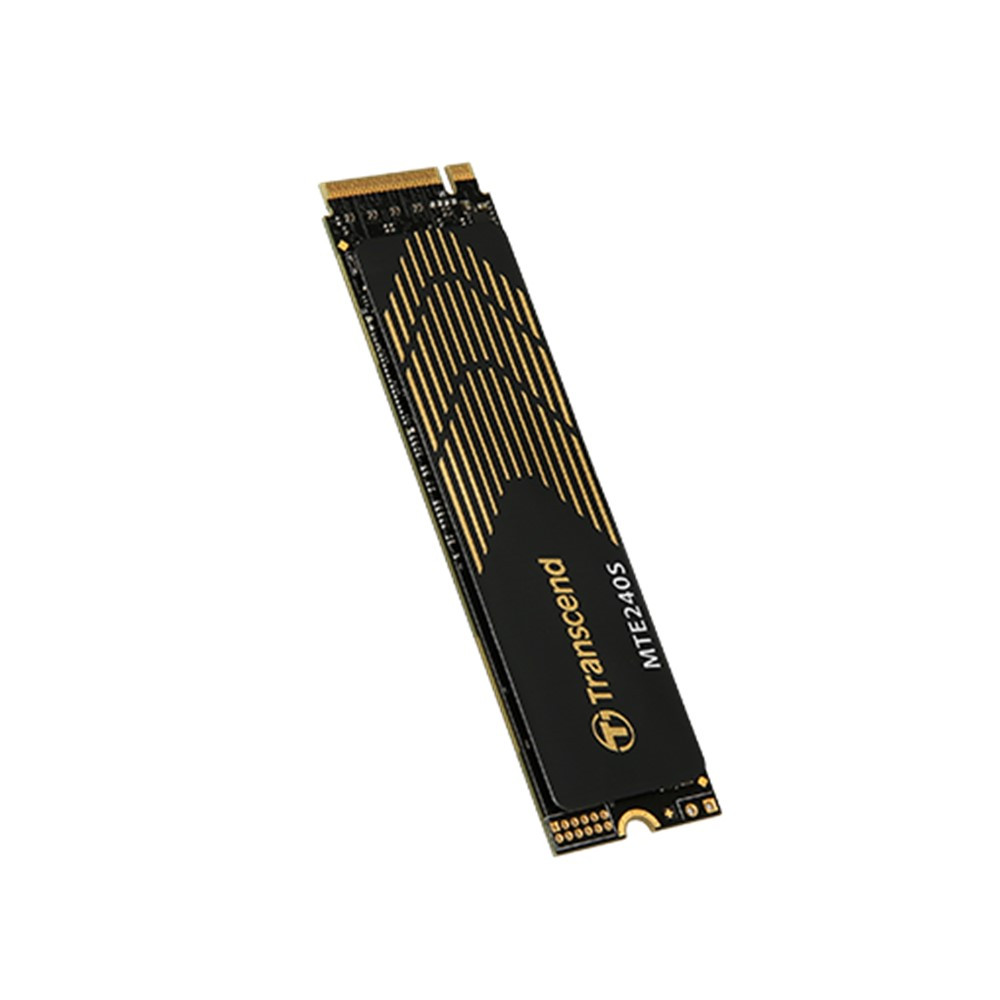

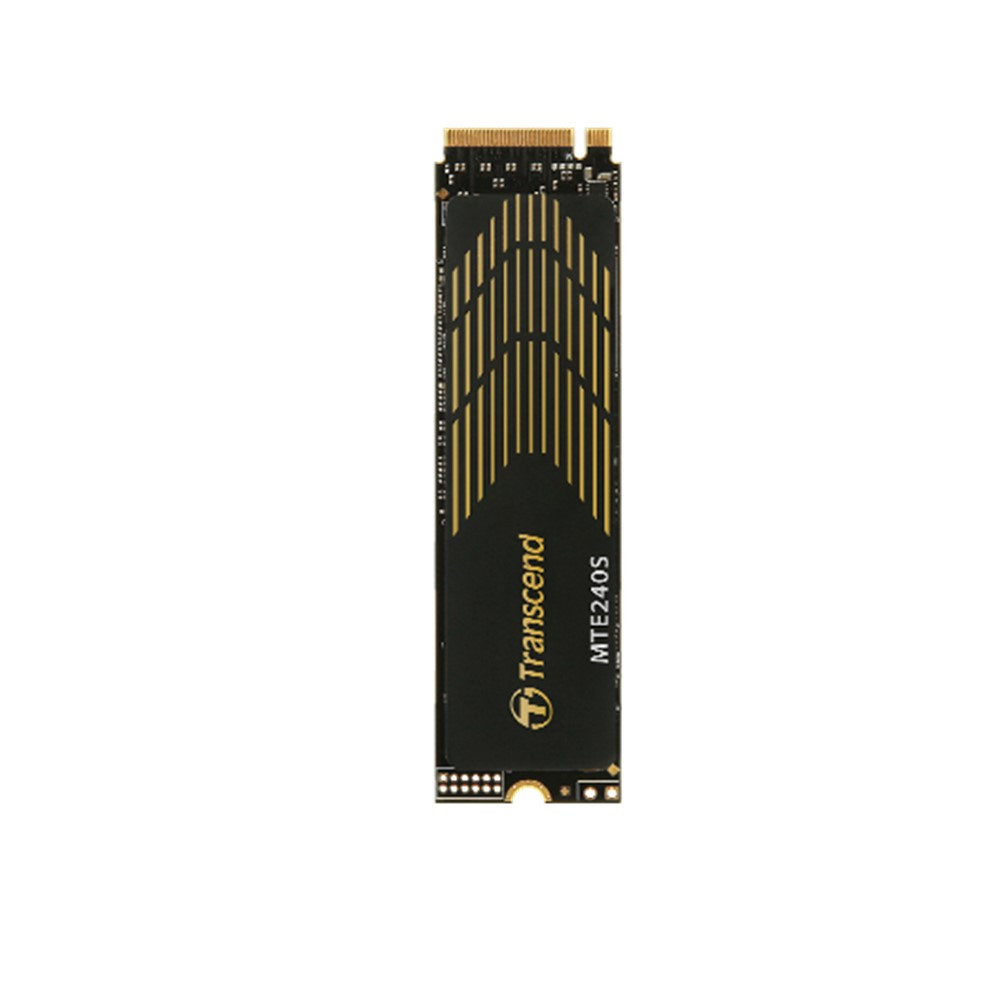

Transcend 1TB 240S NVMe PCle 3D NAND M.2 2280 SSD – TS1TMTE240S

Supreme transfer speeds
Understanding the NVMe PCIe interface
Next generation storage: PCIe 4.0 SSD
Stay cool with graphene heatsink
3D expansion to break through limits
Better endurance, higher reliability
SSD Scope software
Guaranteed quality

SKU: TS1TMTE240S Category: Transcend

Appearance
Dimensions	Double-sided 80 mm x 22 mm x 3.77 mm (3.15" x 0.87" x 0.15")
Weight	10 g (0.35 oz)
Type	M.2 2280
Interface
Bus Interface	NVMe PCIe Gen4 x4
Storage
Flash Type	3D NAND flash
Capacity	500 GB/ 1 TB
Operating Environment
Operating Temperature	0°C (32°F) ~ 70°C (158°F)
Operating Voltage	3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)	1 TB up to 3,800/3,200 MB/s 500 GB up to 3,800/3,200 MB/s
4K Random Read/Write (IOmeter)	1 TB up to 370,000/560,000 IOPS 500 GB up to 190,000/540,000 IOPS
Terabytes Written (TBW)	1 TB 1700 TBW 500 GB 850 TBW
Mean Time Between Failures (MTBF)	5,500,000 hour(s)
Drive Writes Per Day (DWPD)	0.95 (5 yrs)
Note	Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. Terabytes Written (TBW) expresses the endurance under the highest capacity. Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
Warranty
Certificate	CE/ FCC/ BSMI/ KC/ RCM/ UKCA
Warranty	Five-year Limited Warranty
Warranty Policy	Please click here for more information about the Transcend Warranty Policy. Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage. Removal of heatsink may cause damage to the SSD not covered under Transcend's warranty policy.
System Requirement
Operating System	Microsoft Windows 7 or later Linux Kernel 2.6.31 or later
Note	Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. Improper insertion may lead to damage.
