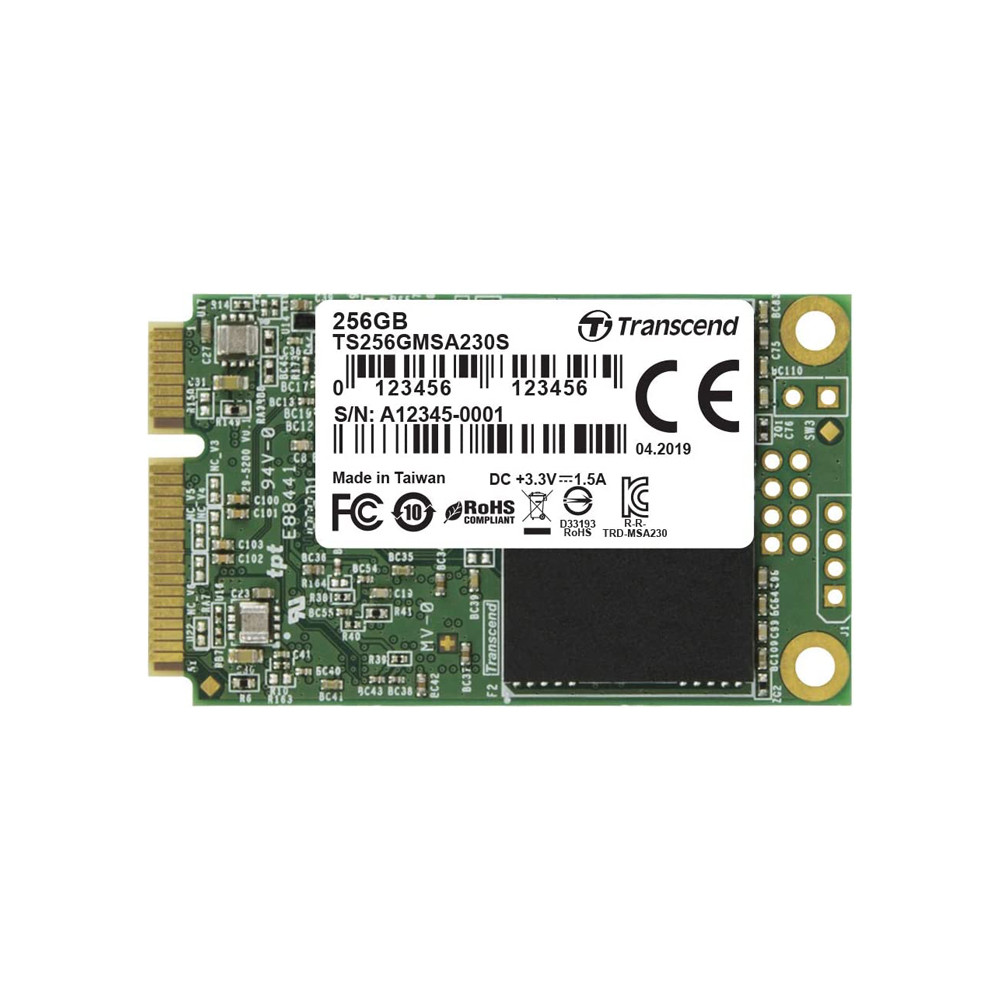

Transcend 256GB SATA III 6Gb/s 3D NAND DDR3 DRAM 230S mSATA SSD – TS256GMSA230S

Features

3D NAND flash memory
DDR3 DRAM cache
Advanced Global Wear-leveling and Block management for reliability
Built-in LDPC ECC (Error Correction Code) functionality
Supports Advanced Garbage Collection, S.M.A.R.T. function, and Security Command
Supports TRIM and NCQ commands

SKU: TS256GMSA230S Category: Transcend

Appearance
Dimensions	50.8 mm x 29.85 mm x 4.85 mm (2.00" x 1.18" x 0.19")
Weight	9 g (0.32 oz)
Interface
Bus Interface	SATA III 6Gb/s
Storage
Flash Type	3D NAND flash
Capacity	64 GB/ 128 GB/ 256 GB/ 512 GB
Operating Environment
Operating Temperature	0°C (32°F) ~ 70°C (158°F)
Operating Voltage	3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)	512 GB up to 560/500 MB/s 256 GB up to 530/400 MB/s 128 GB up to 550/400 MB/s 64 GB up to 350/200 MB/s
4K Random Read/Write (IOmeter)	512 GB up to 65,000/85,000 IOPS 256 GB up to 45,000/70,000 IOPS 128 GB up to 40,000/70,000 IOPS 64 GB up to 35,000/50,000 IOPS
Terabytes Written (TBW)	512 GB 280 TBW 256 GB 140 TBW 128 GB 70 TBW 64 GB 35 TBW
Mean Time Between Failures (MTBF)	2,000,000 hour(s)
Drive Writes Per Day (DWPD)	0.5 (3 yrs)
Note	Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. Terabytes Written (TBW) expresses the endurance under the highest capacity.
Warranty
Certificate	CE/ FCC/ BSMI/ KC/ RCM/ UKCA
Warranty	Three-year Limited Warranty
Warranty Policy	Please click here for more information about the Transcend Warranty Policy. Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.
System Requirement
Operating System	Microsoft Windows 7 or later Linux Kernel 2.6.31 or later
