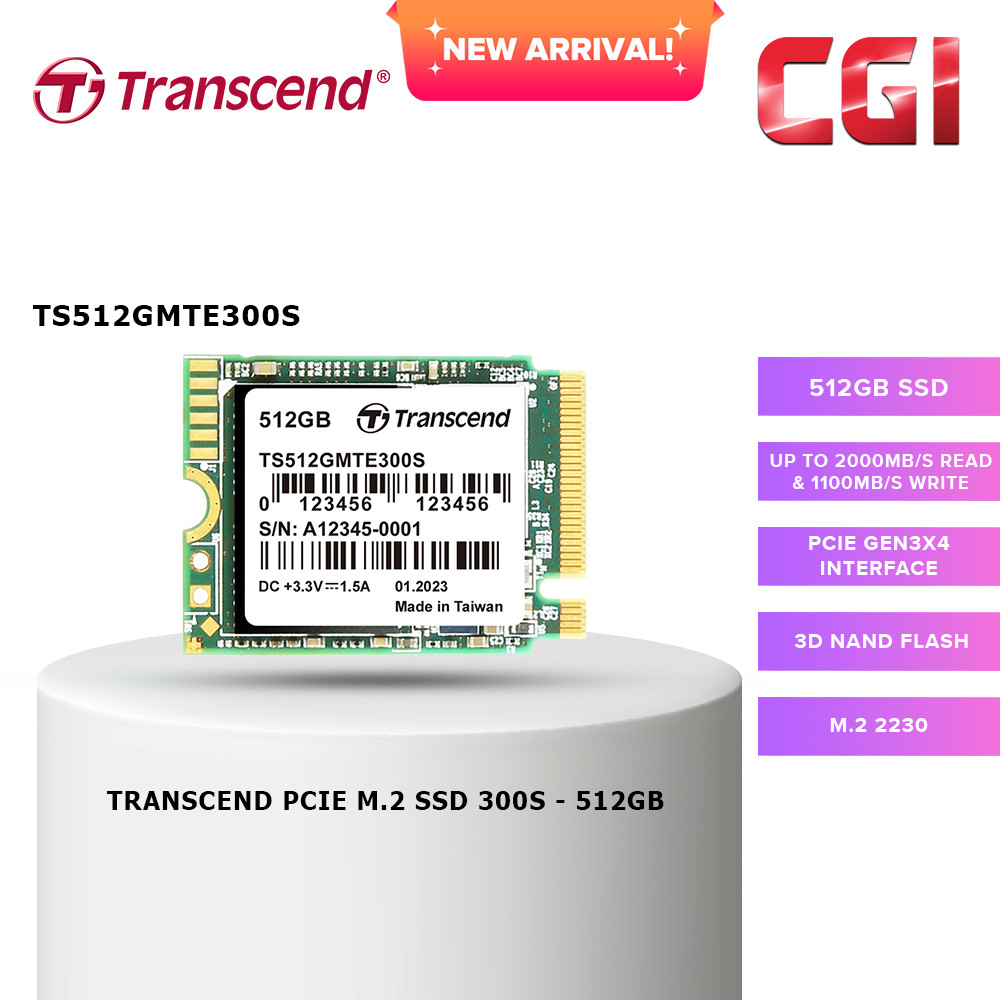

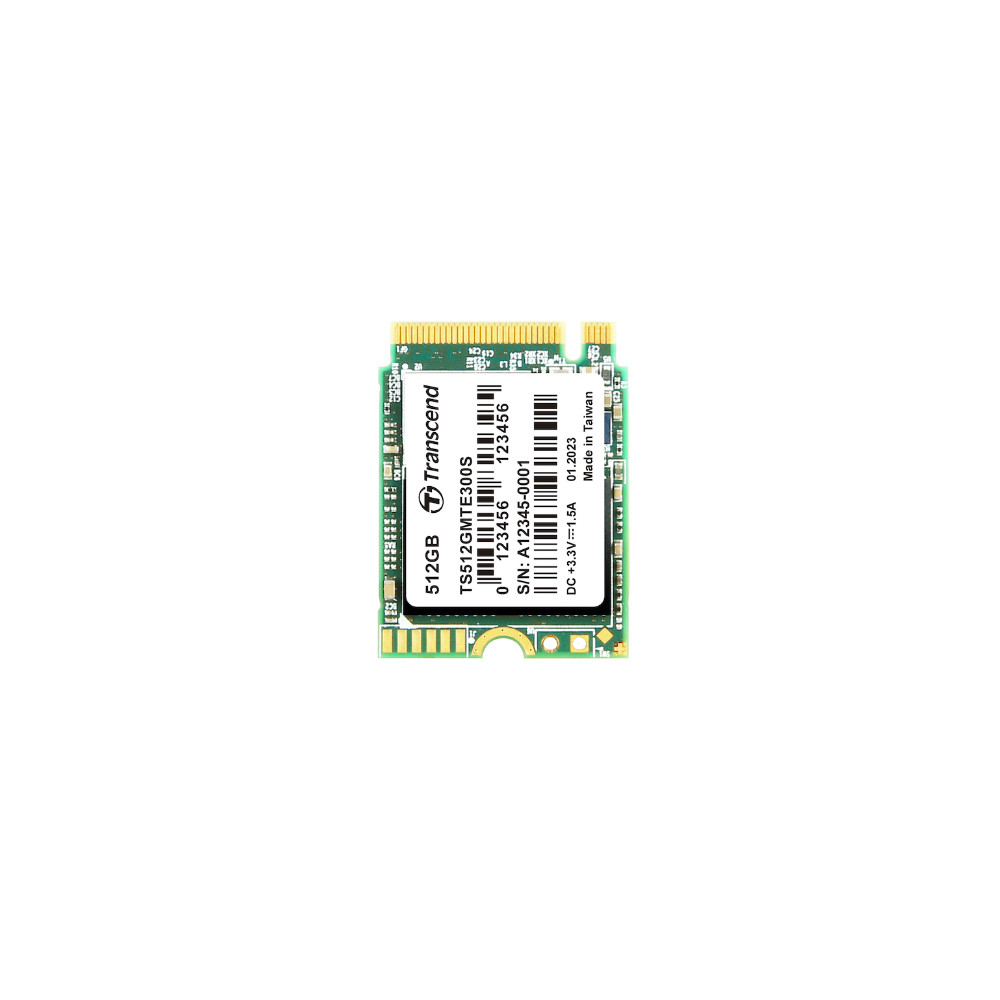

Transcend 512GB MTE300S NVMe PCIe Gen3 x4 SSD – TS512GMTE300S

Ready for the Best
Optimized for Small, Thin Devices
High Productivity Anytime, Anywhere
Be Bold, Save More.
Always Reliable, Always Evolving.
SSD Scope Software
Guaranteed Quality

SKU: TS512GMTE300S Category: Transcend

Dimensions	Single-sided 30.0 mm x 22.0 mm x 2.23 mm (1.18" x 0.87" x 0.09")
Weight	4 g (0.14 oz)
Type	M.2 2230
Interface
Bus Interface	NVMe PCIe Gen3 x4
Storage
Flash Type	3D NAND flash
Capacity	256 GB/ 512 GB
Operating Environment
Operating Temperature	0°C (32°F) ~ 70°C (158°F)
Operating Voltage	3.3V±5%
Performance
Sequential Read/Write (CrystalDiskMark)	512 GB up to 2,000/1,100 MB/s 256 GB up to 2,000/950 MB/s
4K Random Read/Write (IOmeter)	512 GB up to 90,000/190,000 IOPS 256 GB up to 90,000/220,000 IOPS
Terabytes Written (TBW)	512 GB 200 TBW 256 GB 100 TBW
Mean Time Between Failures (MTBF)	2,000,000 hour(s)
Drive Writes Per Day (DWPD)	0.21 (5 yrs)
Note	Speed may vary due to host hardware, software, usage, and storage capacity. The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. Terabytes Written (TBW) expresses the endurance under the highest capacity. Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives.
Warranty
Certificate	CE/ FCC/ BSMI/ KC/ RCM/ UKCA
Warranty	Five-year Limited Warranty
Warranty Policy	Please click here for more information about the Transcend Warranty Policy. Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.
System Requirement
Operating System	Microsoft Windows 7 or later Linux Kernel 2.6.31 or later
Note	Systems for use with the PCIe M.2 SSD must have an M.2 connector with only an M key. B-key connectors are not compatible. I
